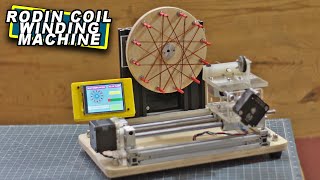

Hello friends in this video I have made a Rodin Coil Winding machine, also known as starship.
In this machine I have used three stepper motor two for wire feeding motion and one for coil motion.
I have used a Nextion make HMI for user data input.
#Arduinoproject
#DIY
Component used.

Nema 17 stepper motor x 3
Arduino Nano
A4988 Driver
Nextion 2.8” HMI

Code & circuit
updating…..
