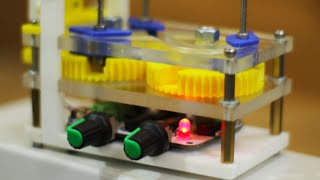

Hello friends I have made a mini compact braiding machine, using CNC cut acrylic parts and 3D printed parts I also used a custom made PCB in this project for DC motor speed control.
I have planned this project video in 2 parts in this first part I made the project and in 2nd part we will show how machine will work and do braiding.

Gerber file for DC motor speed controller PCB
https://drive.google.com/file/d/1_-wUZGmg8EVJMFfkqFnAXCWgRke6lz8c/view?usp=sharing
