DIY SMD Resistor cutting machine | Arduino project

DIY SMD Resistor cutting machine | Arduino projectУ вашего броузера проблема в совместимости с HTML5

PCBA from $0(Free Setup,Free Stencil),Get Coupons Here:https://jlcpcb.com/IYB

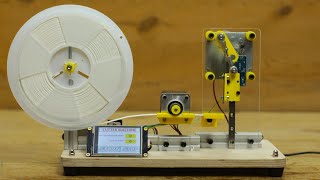

Hello friends in this video I have made a SMD resistor reel cutting machine.
user can cut any amount if resistor per any amount of strips.
It is convenient for those you daily dealing with SMD components.
A stepper motor feed the reel towards the cutter blade and high torque motor run the blade up and down and cut the Reel.
A small HMI is used for user data input.


Arduino Code
https://drive.google.com/file/d/1V5KDVmS5Or9DYNhr9ybyHRThXS6qOYb5/view?usp=sharing

HMI File
https://drive.google.com/file/d/1rQL9gPh4psECZF6P9ddwJBcuBucEWJze/view?usp=sharing

Custom PCB :
https://oshwlab.com/sharmaz747/multipurpose-pcb_copy_copy_copy

????visit for more projects :-
???? https://www.instagram.com/mrinnovative01
???? http://electricdiylab.com/
???? FB page :- https://www.facebook.com/InnovativeMr/


This video is made for entertainment purposes only. Please use judgment, care, and precaution if you plan to replicate.
